Globaal de Maritieme Nood en de Veiligheidssysteem van de Zoekenredding
Belangrijkste kenmerken
Merknaam:
THUNDSEA
Modelnummer:
Zoeken en reddingsschat VSA8
Plaats van herkomst:
Qingdao
Certificering:
CCS
Minimale bestelhoeveelheid:
Één reeks
Leveringscapaciteit:
30 reeks per maand
Levertijd:
15 dagen
Betalingsvoorwaarden:
L/C, T/T
Standaard Verpakking:
Kartondoos
Productoverzicht
Zoeken en Hoge Ontvangende de Gevoeligheids Waterdichte Antenne van de reddingsschat VSA8 Specificaties Batterij Lithiumbatterij, 9V/1.5AH, 8 jaar het levens Prestatiestijd >24h@-20℃ Antenne Verticale monopole Programmeringsinterface Bidirectionele infrared.940nm LCD 128*64, Rooster Activeringsmanie...
Product aangepaste attributen
Markeren
Het veiligheidsbeheerssysteem van het Zoekenschip
,Reddings veilige terugkeer naar havensysteem
,Het waterdichte beheersysteem van het smsschip
Batterij:
Lithiumbatterij, 9V/1.5AH, 8 jaar het levens
Prestatiestijd:
>24h@-20℃
Antenne:
Verticale monopole
Programmeringsinterface:
Bidirectionele infrared.940nm
LCD:
128*64, Rooster
Activeringsmanier:
Manual/By water
Overeenkomstensteun:
MSG1.MSG14
propertiesWater-bewijs:
5m/10mins
Grootte:
90mm×49mm×30mm, 116g
Het werk Temperaturen:
- 20℃~50℃
Opslagtemperaturen:
- 40℃~70℃
Productbeschrijving

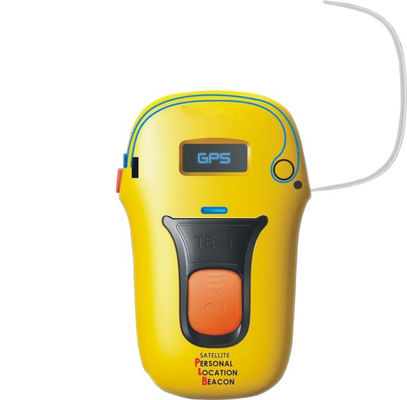

Zoeken en Hoge Ontvangende de Gevoeligheids Waterdichte Antenne van de reddingsschat VSA8
Specificaties
| Batterij | Lithiumbatterij, 9V/1.5AH, 8 jaar het levens |
| Prestatiestijd | >24h@-20℃ |
| Antenne | Verticale monopole |
| Programmeringsinterface | Bidirectionele infrared.940nm |
| LCD | 128*64, Rooster |
| Activeringsmanier | Manual/By water |
| Overeenkomstensteun | MSG1.MSG14 |
| Waterdichte eigenschappen | 5m/10mins |
| Grootte | 90mm×49mm×30mm, 116g |
| Het werk temperaturen | - 20℃~50℃ |
| Opslagtemperaturen | - 40℃~70℃ |
AIS Transmitte
◆ Outputfrequentie: 161.975 Mhz, 162,025 Mhz
◆ Outputmacht: 2W (33dBm) ±1.5dB
◆ Datasnelheid: 9600bps
◆ Modulatiebandbreedte: 25 Khz
◆ Modulatiewijze: GMSK, FM
◆ Herhaal cyclus: 1 min
◆ Actieafstand: 7km (Typisch)
Satelliet plaatsende ontvanger (GNSS):
◆Satellite plaatsend systeem: GPS, Beidou-satelliet (kompas 2)
◆ Het ontvangen van kanaal: 56 kanalen, L1+B1
◆ Het ontvangen van Antenne: ingebouwde ceramische plaat
◆ Het ontvangen van Gevoeligheid: -165dBm
◆ Positionele fout: 2.5m
